FAC-Gear box

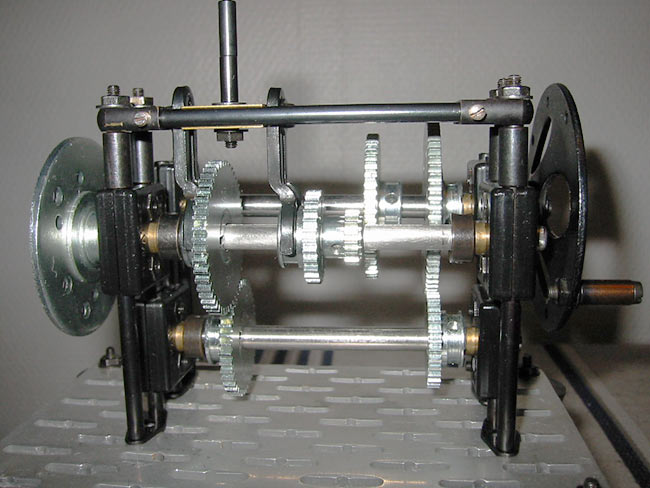

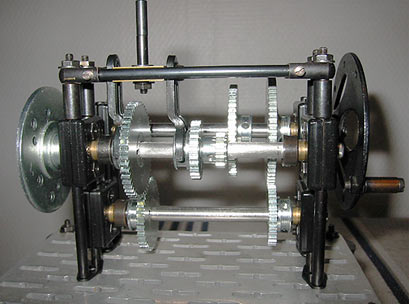

Laboratory model of gear box with two gears forward, one gear backward and gear neutral.
Built by Börje Thelin Ekerö, and on FAC-System's homepage the model is modified as per drawing.
Click the photo to view it in bigger format.
| Art.No. |
Quantity |
Parts denomination |
| 1542 |
1 |
Assembly plate 136x80 mm |
| 1715 |
4 |
Screw M3x15 mm |
| x |
4 |
Rubber paws, no FAC original |
| 2570 |
1 |
Hand wheel |
| 1105 |
4 |
Threaded rod diameter 4x70 mm |
| 1107 |
4 |
Threaded rod diameter 4x90 mm |
| 1650 |
8 |
Three-hole link |
| 2112 |
12 |
Sleeve socket (twin rods) |
| 2106 |
6 |
Bearing sleeve, 6 mm axle |
| 2036 |
1 |
Grooved shaft 108 mm |
| 2010 |
2 |
Shaft 108 mm |
| 1710 |
12 |
Screw M3x10 mm |
| 1763 |
30 |
Nut M3 |
| 1771 |
13 |
Washer 8/4 mm |
| 1412 |
5 |
Spacing sleeve 12 mm |
| 1182 |
5 |
Bushing, 12 mm |
| 1715 |
1 |
Screw M3x15 mm |
| 1101 |
1 |
Threaded rod diameter 4x30 mm |
| 2050 |
2 |
Gear shifting fork |
| 2501 |
1 |
Sliding cross head |
| 1706 |
2 |
Screw M3x6 mm |
| 2520 |
4 |
Connecting rod end |
| 1006 |
2 |
Rod diameter 4x80 mm |
| 2041 |
1 |
Key 7 mm |
| 2042 |
1 |
Key 16 mm |
| 1703 |
13 |
Set screw M3x3 mm |
| 2346 |
1 |
Planet wheel 37,8 mm |
| 3052 |
1 |
Gear wheel 37,8 mm |
| 3028 |
1 |
Gear wheel 21 mm |
| 3016 |
1 |
Gear wheel 12,6 mm |
| 3040 |
1 |
Gear wheel 29,4 mm |
| 3032 |
1 |
Gear wheel 23,8 mm |
| 3064 |
1 |
Gear wheel 46,2 mm |
| 3048 |
1 |
Gear wheel 35 mm |
| 2202 |
3 |
Circlip 6 mm axle |
